NovaTherm 220sqm Multi Zone Wet Underfloor Heating System

NovaTherm 220sqm Multi-zone Wet Underfloor Heating Kit

Our Water Underfloor Heating Systems are the ideal choice for homeowners and tradesmen wishing to install a European Premium Branded water underfloor heating kit.

This multi-room water underfloor heating kit comes with all the pipe and fittings you'll need to cover your complete area (1x Heatmiser Digital Thermostat is included as standard in the kit).

Please Note: Soleheat Water Underfloor Heating kits feature water temperature control, beware of systems without this facility. We only supply high quality premium triple layered pipe. The aluminium layer acts as an oxygen barrier, preventing the oxygen diffusion through the polymer matrix, which stops corrosion of the metal components in the system.

This kit will provide 220sqm of coverage at 200mm pipe centres and comes with all the materials and connections for quick and easy installation.

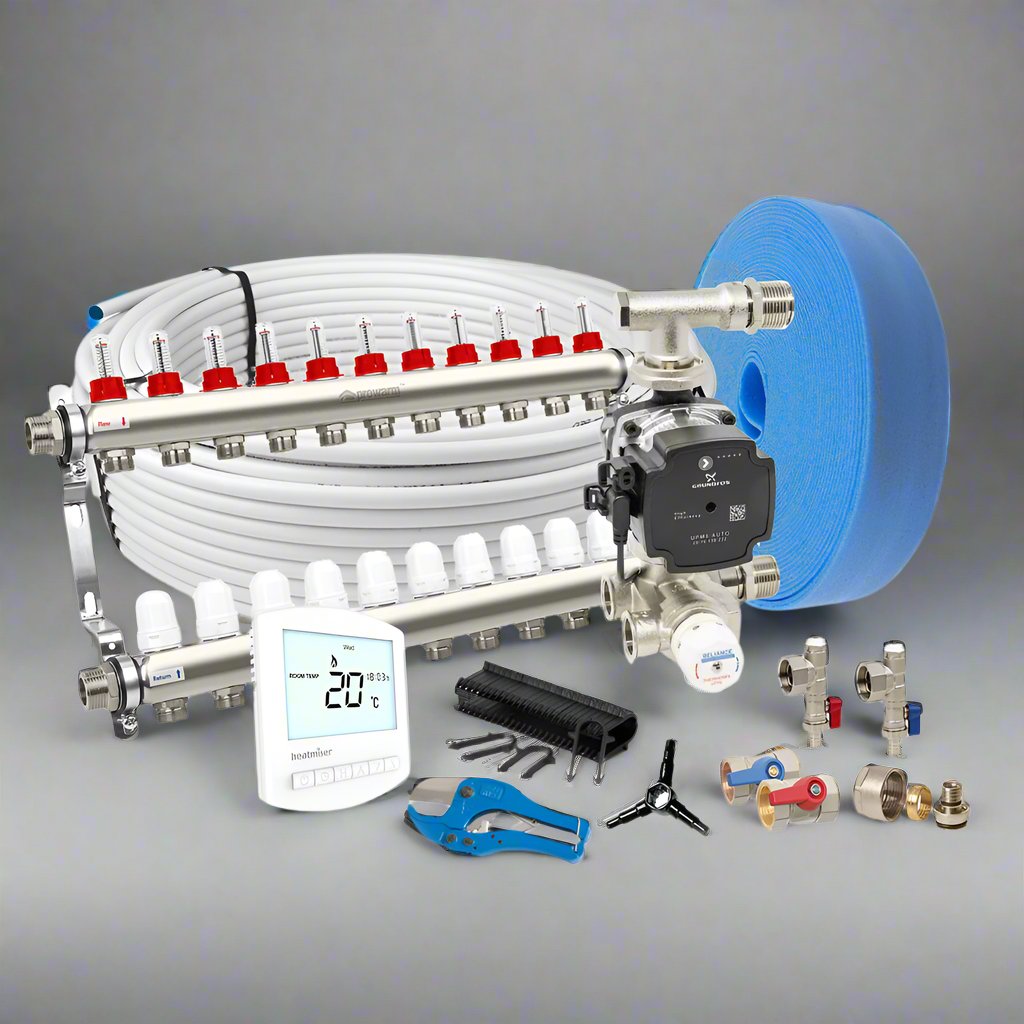

Kit contents:

Ø  A rated UPM 3 Grundfos Manifold Pump & Reliance Mixing Valve - ESS-UFH-T4-G-210

Ø  11 Port Stainless Steel NovaTherm Premium European Manifold inc Auto Air Vents - NMSS-1F-3/4X11

Ø  Ball Valve Pair - NM-BVTGX2

Ø  16mm Premium NovaTherm Triple Layered Aluminium Pipe x 1100m - NP2-1216-100-W

Ø  60mm Pipe Clips x1400 - KU-16-600X300

Ø  50m Perimeter Insulation Roll - EI-50

Ø  16mm Manifold Pipe Connectors x22 - NF1-C1216X3/4A

Ø  Heatmiser Digital Thermostat (included as standard) - EDGE

Ø  Pipe Reamer - ZYD2-12-16-20

Ø  Pipe Cutter - GJIII

Should you wish to control the zones independently please select the upgrade option to include thermal actuators and 8 zone wiring centre, giving you full flexibility across each pipe loop.

Please note the pipe supplied will typically be in either 100m or 200m lengths, making your install as simple and easy as possible.
