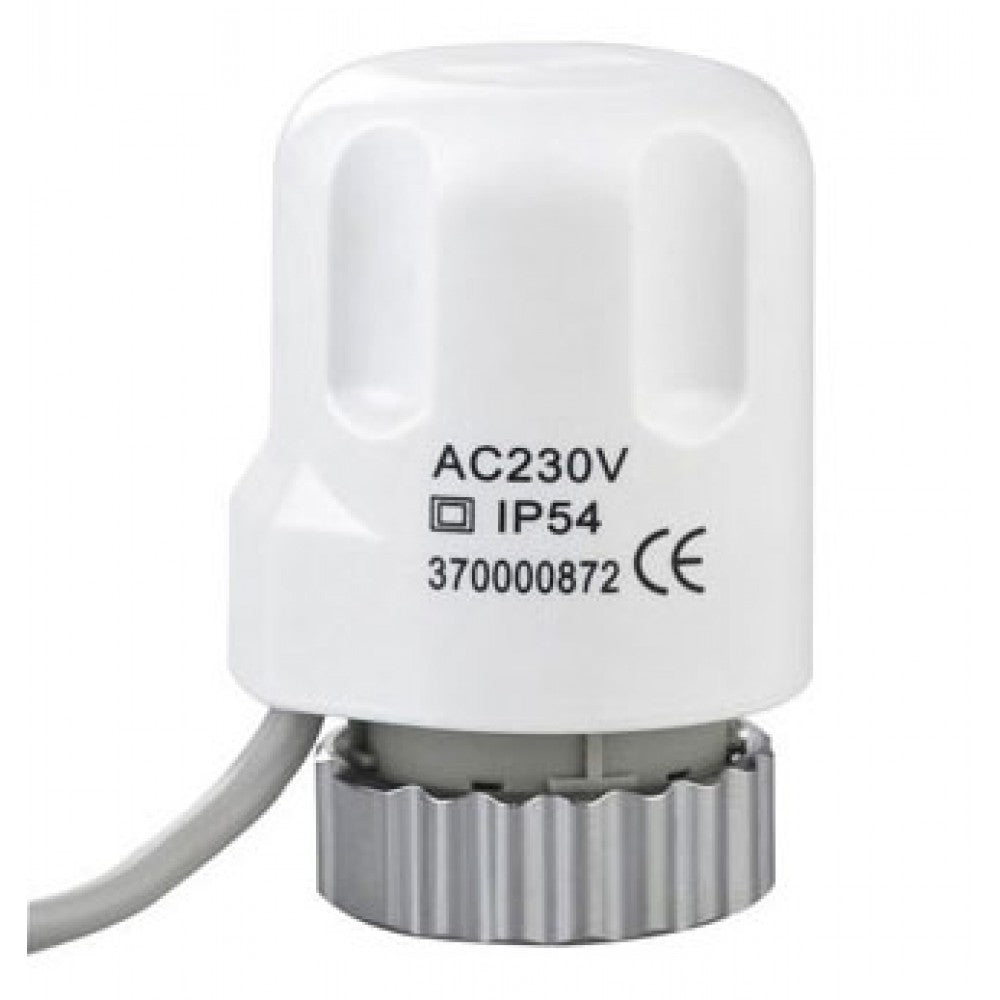

NovaTherm™ Electrothermic Manifold Actuator

NovaTherm™ Electrothermic Actuators, series 22C, are ON/OFF devices used for automatic actuation of each of the manifold valves. When mounting the actuator on the valve body, the valve plug shuts off the flow of fluid (normally closed version/ NC). When voltage is applied, a linear movement of the thermostatic element causes the valve plug to open, which then allows the fluid to flow. When the voltage is removed, the valve plug is closed again.

Features:
• Automatic actuation of each of the valves
• Individually control indoor temperatures

Availability to check status of actuator by transparent window on the cover.

CE Marked in accordance with the following standards :
– EEC EMC (CEI-EN 55104/95 ; CEI-EN 55014/93)
– EN 60730-1; EN 60730-2-14
– Approval ENEC pending
